自动兑币机--说明书
内容引索
一: 前言········································································3页
二: 概述········································································3页
三: 安全注意事项································································3页
四: 机器图片····································································4页
五：机器标配····································································5页
六：机器配置····································································5页
七: 机器特性····································································6页
八：功能描述····································································6页
九: 键盘按键及定义······························································7页
十：进入菜单的操作······························································8页
1.账目查询······································································8页
2.账目清零······································································8页
3.接收面额设定··································································9页
l 设定接收1-100·······························································9页
l 设定接收10-100元····························································9页
4.兑币比率设定·································································10页
l 兑币比率为1:1的设置························································10页
l 兑币比率为1:2的设置························································11页
l 不成比率的兑币设置（促销应用）··············································11页
5.密码设置·····································································12页
6.恢复兑币·····································································12页
7.硬币全退·····································································13页
8.退出菜单·····································································13页
9.查看设备ID···································································13页
10.语言选择····································································13页
11.投币账目查询································································13页
12.投币账目清零································································14页
13.设置配置密码································································14页
14.设置脉冲比率································································15页
15.硬币管理····································································15页
16.设置硬币管理密码····························································16页
17.设置赠送硬币································································16页
十一：故障排除·································································18页
一：前言
尊敬的用户：
感谢您选择本公司的自动兑币机。为了我们更好地为您服务，在使用机器前请认真阅读此说明书，并妥善保存本说明书。本公司对本产品实行一年质量保证，终身维护。对于以下情况，售后服务部门在进行维修时收取一定的材料成本费。情况如下：
v 产品或部件超出免费保修期；
v 在运输、搬卸过程中由购买方造成的故障；
v 未经厂家许可而对产品进行拆卸、维修改装而造成的故障
二：概述
YF6500型自动兑币机是专门用于无人管理纸币自动兑换硬币的机器。广泛应用于银行金融系统、公交、地铁、邮电、娱乐等硬币需求量大的行业。本机器采用高精度纸币识别接收器，接收纸币顺畅，假币识别率高达99.8%。自主研发主控制板配进口退币器，稳定耐用；LED+LCD双屏显示，操作直观方便。是无人管理纸币自动兑换硬币系统的首选机器。
三：安全注意事项
本机采用二极带地线插头电源线，插座必须可靠接地。尽可能使用漏电保护器
用于兑换的硬币中，不允许混杂其他物品，如杂币、螺丝、烟头等，以免引起计数不准、卡币故障，甚至损伤机器。使用时应水平平稳放置，本机应放置在干燥、阴凉、通风处，不得采用插入或拔出电源插头的方法来启动或停止机器工作，使用时勿让儿童玩耍，非专业人员不得打开、拆卸机器。

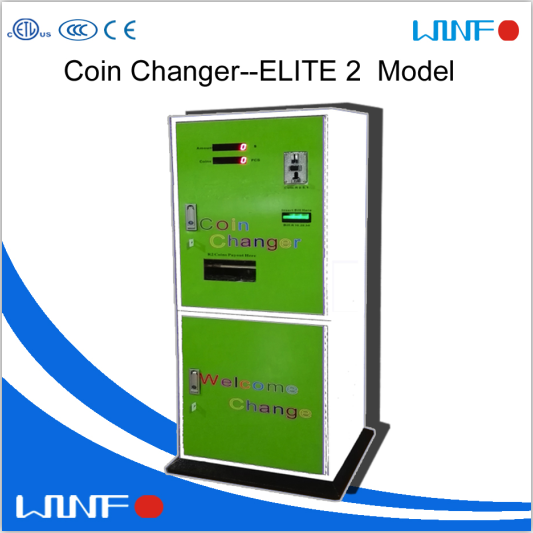

四：机器图片，如下图：
五：机器标配，如下表格：
|
序号 |
名称 |
数量 |
说明 |
图片 |
|
1 |
兑币机 |
1台 |
标配单纸币器，可选双纸币器 |
|
|
2 |
电源线 |
1条 |
3插，标配美制，可选配英制 |
|
|
3 |
说明书 |
1本 |
中文说明书（英文选配） |
|
|
4 |
钥匙 |
3把 |
1把门锁，1把钱箱锁，1把币箱锁 |
|
六：机器配置，如下表格：
|
序号 |
名称 |
数量 |
说明 |
|
1 |
主板 |
1 |
控制机器运转 |
|
2 |
纸币器 |
1 或 2 |
接收纸币：可接收100多个国家的纸币； |
|
3 |
出币马达 |
1 |
兑出硬币，适用尺寸：直径21.5-26.5MM，厚度：1.8-2.3MM |
|
4 |
LCD |
1 |
显示菜单：可查账，设定参数、密码等 |
|
5 |
LED |
1 |
显示接收的纸币面额和兑出的硬币数量 |
|
6 |
键盘 |
1 |
用于进入LCD菜单及设定参数 |
|
7 |
电源线 |
1 |
3插，标配美制，可选配英制，110V~240V |
|
8 |
保险丝 |
1 |
2A的保险丝，保障机器核心部件的完好 |
|
9 |
滤波器 |
1 |
对输入的110V~240V进行过滤，排除杂波干扰 |
|
10 |
两脚开关 |
1 |
方便随时开启及关闭电源 |
七：机器特性
|
序号 |
名称 |
说明 |
|
1 |
接收纸币面额 |
1、5、10、20、50、100 RMB··· |
|
2 |
纸币箱容量 |
约2000张 |
|
3 |
硬币箱容量 |
约15000枚 |
|
4 |
适用硬币尺寸 |
直径：21.5~26.5MM 厚度：1.5~2.3MM |
|
5 |
硬币出币速度 |
600枚/分钟 |
|
6 |
使用电源电压 |
110V~240V |
|
7 |
电源功率 |
100W |
|
8 |
机器尺寸 |
45（长）X36（宽）X150（高）CM |
|
9 |
重量 |
60Kg |
八：功能描述，如下：
1. 提供客户投入纸币，兑换出硬币。
2. 可以设定接收100国个国家和地区的纸币，兑换出各种硬币/代币。
3. 机器有GSM短信猫及电话报警功能，依需求进行选配。
4. 机器外置LED显示，上排显示投入之金额，下排显示兑出之硬币，直观明了。
5. 机器内置LCD屏幕，让客户可以自己对机器进行各种设定，人性化直观式的显示，简单容易。
九：键盘及按键：每台兑币机配有一个小键盘，用于操作菜单。键盘上有：【0】到【9】的数字按键以及其他按键【-】、【+】、【Enter】、【Del】、【Back Space】、【Num Lock】、【/】、【*】。
没有使用的按键：【Num Lock】、【/】、【*】这三个按键没有使用。
按键定义：
l 按键【0】到【9】的用途是：用于选择和输入数字。
l 按键【-】的用途是:向上选择。
l 按键【+】的用途是：向下选择。
l 按键【Enter】的用途是：确认 和 进入菜单。
l 按键【Del】的用途是：取消 和 退出菜单。
l 按键【Back Space】的用途是：后退。
l 按键【*】的用途是：在选择菜单中的数字大于等于10的数字，“*”表示十位数1 。比如要进入菜单17，则先按“*”，然后再按“7”。
十：进入菜单的操作：开机后，LCD显示『欢迎使用兑币机』，按下【Enter】按键，系统显示『请输入密码』，输入正确的密码后，就可以进入以下菜单界面了。
1.账目查询：可以查询单次投入、兑出的账目以及总的投入、兑出的账目。
|
|
数值显示 |
说明 |
|
1纸币入 ： |
100 |
最近一次投入的纸币金额 |
|
2硬币出 ： |
100 |
最近一次兑出的硬币数量 |
|
3纸总入 ： |
5860 |
总共累加计算所投入的纸币金额 |
|
4币总出 ： |
5860 |
总共累加计算所兑出的硬币总数 |
2.账目清零：此功能是清零最近一次投入的纸币金额 以及 兑出的硬币数量。
|
确定清零？ |
系统会征求操作的意愿。 |
|
1.确认 |
按下【1】，则系统会清零，返回【账目查询】菜单项目进行查看，则【纸币入】和【硬币出】两个菜单后面的100会被清除，变成0。 |
|
2.取消 |
按下【2】，则系统会返回上一级菜单，进入【账目查询】菜单项目进行查看，则【纸币入】和【硬币出】两个菜单后面的100数字不变。 |
3.设定接收面额：本机可以自由设定所需要接收的纸币面额, 下面以人民币为例：
|
接收人民币1--100元的设置。 |
||
|
币值 |
面额 |
注释 |
|
面额一 |
1 |
第一个币种，设定接收1元。 |
|
面额二 |
5 |
第二个币种，设定接收5元。 |
|
面额三 |
10 |
第三个币种，设定接收10元。 |
|
面额四 |
20 |
第四个币种，设定接收20元。 |
|
面额五 |
50 |
第五个币种，设定接收50元。 |
|
面额六 |
100 |
第六个币种，设定接收100元。 |
|
面额七 |
0 |
|
|
面额八 |
0 |
|
|
面额九 |
||
